Discussion 4: Sequences, Trees

Attendance

Your TA will come around during discussion to check you in.

If you miss discussion for a good reason (such as sickness or a scheduling conflict), email cs61a@berkeley.edu within one week to receive attendance credit.

Lists

Some of you already know list operations that we haven't covered yet, such as append. Don't use those today. All you need are list literals (e.g., [1, 2, 3]), item selection (e.g., s[0]), list addition (e.g., [1] + [2, 3]), len (e.g., len(s)), and slicing (e.g., s[1:]). Use those! There will be plenty of time for other list operations when we introduce them later this week.

The most important thing to remember about lists is that a non-empty list s can be split into its first element s[0] and the rest of the list s[1:].

>>> s = [2, 3, 6, 4]
>>> s[0]
2
>>> s[1:]
[3, 6, 4]
A list comprehension describes the elements in a list and evaluates to a new list containing those elements.

There are two forms:

[<expression> for <element> in <sequence>]
[<expression> for <element> in <sequence> if <conditional>]

Here's an example that starts with [1, 2, 3, 4], picks out the even elements 2 and 4 using if i % 2 == 0, then squares each of these using i*i. The purpose of for i is to give a name to each element in [1, 2, 3, 4].

>>> [i*i for i in [1, 2, 3, 4] if i % 2 == 0]
[4, 16]

This list comprehension evaluates to a list of:

  • The value of i*i
  • For each element i in the sequence [1, 2, 3, 4]
  • For which i % 2 == 0

In other words, this list comprehension will create a new list that contains the square of every even element of the original list [1, 2, 3, 4].

We can also rewrite a list comprehension as an equivalent for statement, such as for the example above:

>>> result = []
>>> for i in [1, 2, 3, 4]:
...     if i % 2 == 0:
...         result = result + [i*i]
>>> result
[4, 16]

Q1: Even weighted

Write a function that takes a list s and returns a new list that keeps only the even-indexed elements of s and multiplies them by their corresponding index. First approach this problem with a normal for loop (without list comprehension).

Now that you’ve done it with a for loop, try it with a list comprehension!

Dictionaries

A dictionary is a Python data structure that maps keys to values. For a dictionary d:

  • Each key maps to exactly one value, which you can access with d[<key>].
  • If you try d[<key>] but <key> is not a valid key in d, you'll get an error.
  • You can use <key> in d to test (True or False) whether a key is in d.
  • d.get(<key>, <default>) will return the value that <key> maps to in d, or <default> if <key> is not a key in d.
  • The sequence of keys or values or key-value pairs can be accessed using d.keys() or d.values() or d.items(), respectively.
  • Keys can be of any immutable type (like strings, numbers, and tuples) but not mutable types (like lists).
  • You can use a d in a for loop (such as for k in d). Doing so will iterate through the keys in d.

Q2: Happy Givers

In a certain discussion section, some people exchange gifts for the holiday season. We call two people happy givers if they give gifts to each other. Implement a function happy_givers, which takes in a gifts dictionary that maps people in the section to the person they gave a gift to. happy_givers outputs a list of all the happy givers in the section. The order of the list does not matter.

Note that if someone received but did not give a gift, they will not appear in the gifts dictionary as a key. (They'll appear only as a value.) You can assume that no one gives themself a gift.

Once you've found a solution, as a challenge, attempt to implement a solution in one line using a list comprehension.

Optional: Imagine an alternate case where the dictionary where each person is a key, and its value is a list of all the people they gave a gift to. Attempt to implement a solution to find a list of all happy givers with this configuration.

Trees

For a tree t:

  • Its root label can be any value, and label(t) returns it.
  • Its branches are trees, and branches(t) returns a list of branches.
  • An identical tree can be constructed with tree(label(t), branches(t)).
  • You can call functions that take trees as arguments, such as is_leaf(t).
  • That's how you work with trees. No t == x or t[0] or x in t or list(t), etc.
  • There's no way to change a tree (that doesn't violate an abstraction barrier).

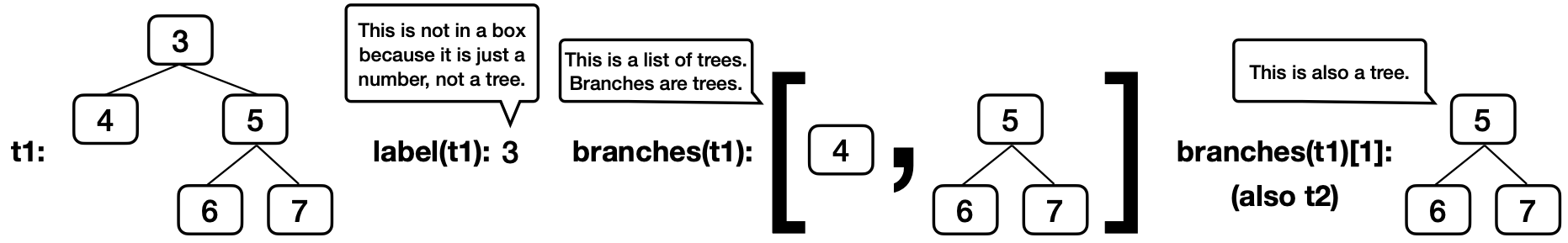

Here's an example tree t1, for which its branch branches(t1)[1] is t2.

t2 = tree(5, [tree(6), tree(7)])
t1 = tree(3, [tree(4), t2])

Example Tree

A path is a sequence of trees in which each is the parent of the next.

def tree(label, branches=[]):
    for branch in branches:
        assert is_tree(branch), 'branches must be trees'
    return [label] + list(branches)

def label(tree):
    return tree[0]

def branches(tree):
    return tree[1:]

def is_leaf(tree):
    return not branches(tree)

def is_tree(tree):
    if type(tree) != list or len(tree) < 1:
        return False
    for branch in branches(tree):
        if not is_tree(branch):
            return False
    return True

Q3: Warm Up

What value is bound to result?

result = label(min(branches(max([t1, t2], key=label)), key=label))

How convoluted!

Here's a quick refresher on how key functions work with max and min,

max(s, key=f) returns the item x in s for which f(x) is largest.

>>> s = [-3, -5, -4, -1, -2]
>>> max(s)
-1
>>> max(s, key=abs)
-5
>>> max([abs(x) for x in s])
5

Therefore, max([t1, t2], key=label) returns the tree with the largest label, in this case t2.

In case you're wondering, this expression does not violate an abstraction barrier. [t1, t2] and branches(t) are both lists (not trees), and so it's fine to call min and max on them.

Q4: Has Path

Implement has_path, which takes a tree t and a list p. It returns whether there is a path from the root of t with labels p. For example, t1 has a path from its root with labels [3, 5, 6] but not [3, 4, 6] or [5, 6].

Important: Before trying to implement this function, discuss these questions from lecture about the recursive call of a tree processing function:

  • What small initial choice can I make (such as which branch to explore)?
  • What recursive call should I make for each option?

  • How can I combine the results of those recursive calls?

    • What type of values do they return?
    • What do those return values mean?

Q5: Find Path

Implement find_path, which takes a tree t with unique labels and a value x. It returns a list containing the labels of the nodes along a path from the root of t to a node labeled x.

If x is not a label in t, return None. Assume that the labels of t are unique.

Q6: Pruning Leaves

Implement prune_leaves, which takes a tree t and a tuple of values vals. It returns a version of t with all its leaves whose labels are in vals removed. Do not remove non-leaf nodes and do not remove leaves that do not match any of the items in vals. Return None if pruning the tree results in there being no nodes left in the tree.
