Attendance

Your TA will come around during discussion to check you in. You can start on the worksheet before being checked in; you don't need to wait for your TA to get started.

Getting Started

What's your favorite tree?

Trees

For a tree t:

• Its root label can be any value, and label(t) returns it.
• Its branches are trees, and branches(t) returns a list of branches.
• An identical tree can be constructed with tree(label(t), branches(t)).
• You can call functions that take trees as arguments, such as is_leaf(t).
• That's how you work with trees. No t == x or t[0] or x in t or list(t), etc.
• There's no way to change a tree (that doesn't violate an abstraction barrier).

Here's an example tree t1, for which its branch branches(t1)[1] is t2.

t2 = tree(5, [tree(6), tree(7)])
t1 = tree(3, [tree(4), t2])

A path is a sequence of trees in which each is the parent of the next.

def tree(label, branches=[]):
    for branch in branches:
        assert is_tree(branch), 'branches must be trees'
    return [label] + list(branches)

def label(tree):
    return tree[0]

def branches(tree):
    return tree[1:]

def is_leaf(tree):
    return not branches(tree)

def is_tree(tree):
    if type(tree) != list or len(tree) < 1:
        return False
    for branch in branches(tree):
        if not is_tree(branch):
            return False
    return True

Q1: Warm Up

What value is bound to result?

result = label(min(branches(max([t1, t2], key=label)), key=label))

How convoluted!

>>> s = [-3, -5, -4, -1, -2]
>>> max(s)
-1
>>> max(s, key=abs)
-5
>>> max([abs(x) for x in s])
5

In case you're wondering, this expression does not violate an abstraction barrier. [t1, t2] and branches(t) are both lists (not trees), and so it's fine to call min and max on them.

Q2: Has Path

Implement has_path, which takes a tree t and a list p. It returns whether there is a path from the root of t with labels p. For example, t1 has a path from its root with labels [3, 5, 6] but not [3, 4, 6] or [5, 6].

Important: Before trying to implement this function, discuss these questions from lecture about the recursive call of a tree processing function:

• What small initial choice can I make (such as which branch to explore)?
• What recursive call should I make for each option?

• How can I combine the results of those recursive calls?

  • What type of values do they return?
  • What do those return values mean?

Q3: Find Path

Implement find_path, which takes a tree t with unique labels and a value x. It returns a list containing the labels of the nodes along a path from the root of t to a node labeled x.

If x is not a label in t, return None. Assume that the labels of t are unique.

Description Time! When your group has completed this question, it's time to describe why this function does not have a base case that uses is_leaf. If you can't figure it out, talk to a TA.

Optional Question

Q4: Only Paths

Implement only_paths, which takes a Tree of numbers t and a number n. It returns a new tree with only the nodes of t that are on a path from the root to a leaf with labels that sum to n, or None if no path sums to n.

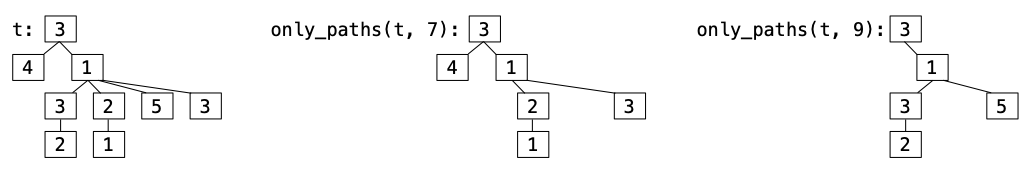

Here is an illustration of the doctest examples involving t.
