Solution Files

You can find the solutions in hw06.sql.

Required Questions

To check your progress, you can run sqlite3 directly by running:

python3 sqlite_shell.py --init hw06.sql

You should also check your work using ok:

python3 ok

Visualizing SQL

The CS61A SQL Web Interpreter is a great tool for visualizing and debugging SQL statements!

To get started, visit code.cs61a.org and hit Start SQL interpreter on the launch screen.

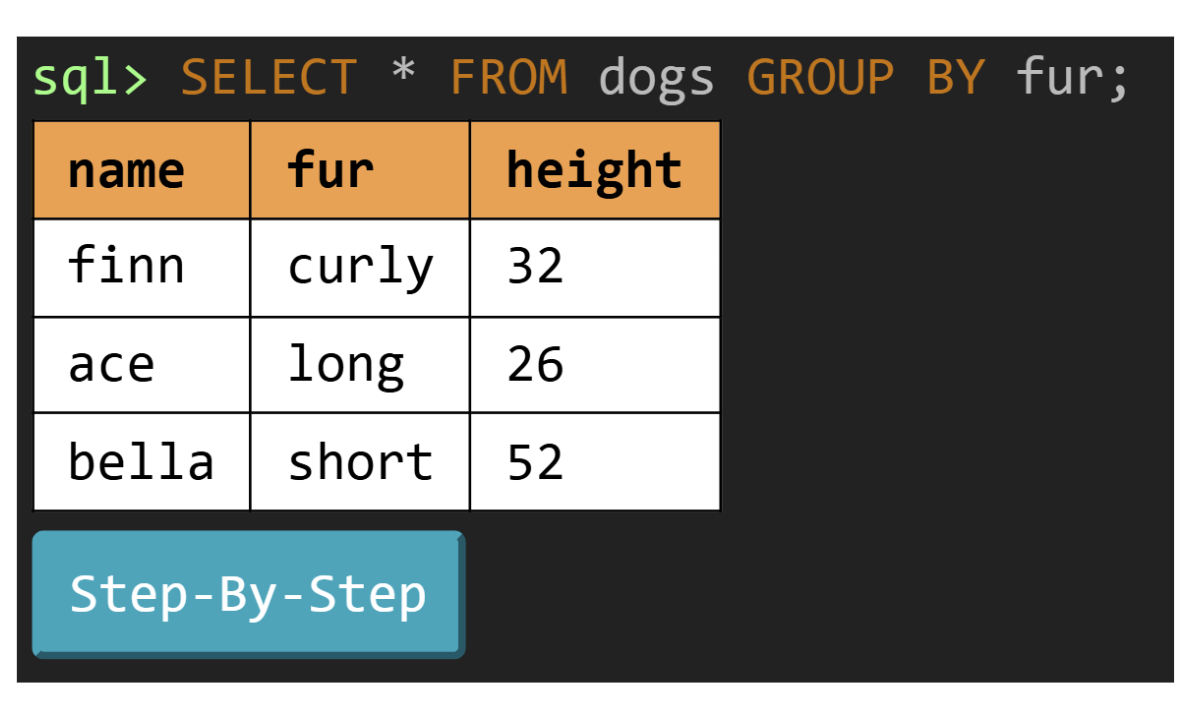

Most tables used in assignments are already available for use, so let's try to execute a SELECT statement:

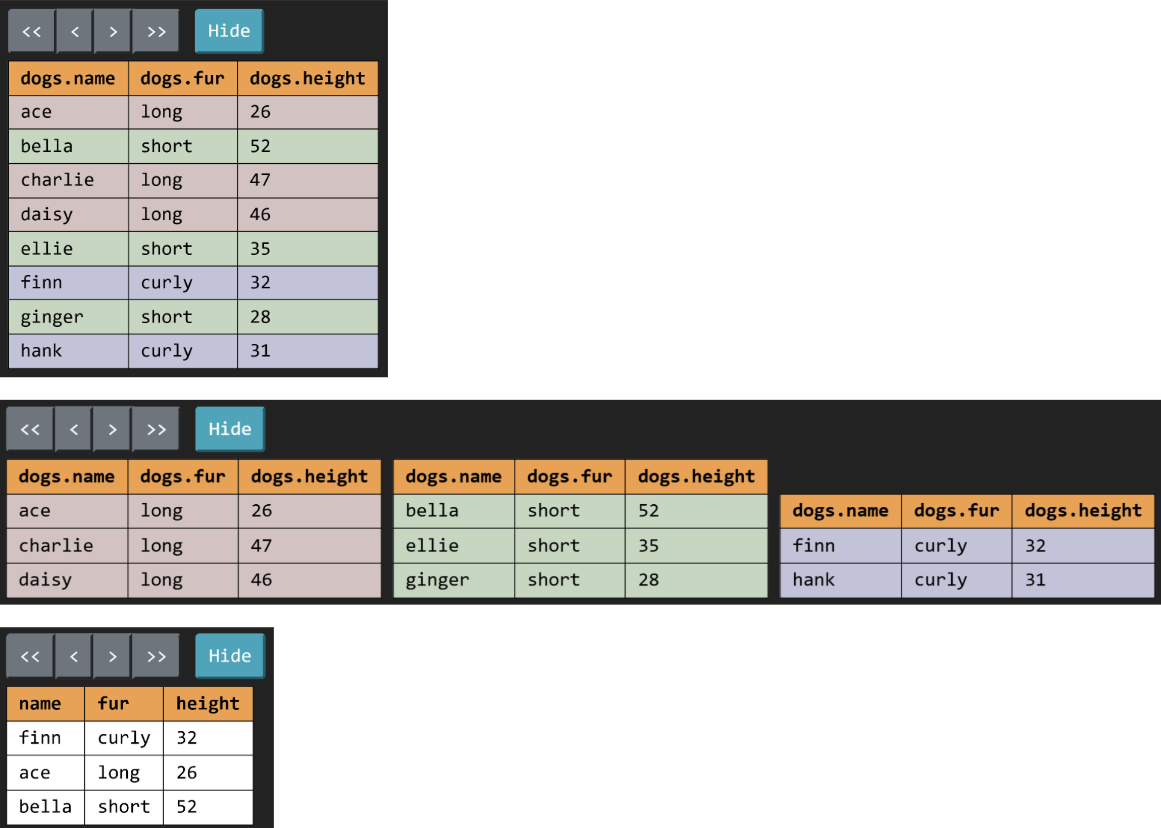

In addition to displaying a visual representation of the output table, the "Step-by-step" button lets us step through the SQL execution and visualize every transformation that takes place. For our example, clicking on the next arrow will produce the following visuals, demonstrating exactly how SQL is grouping our rows to form the final output!

Topics

Consult this section if you need a refresher on the material for this lab. It's okay to skip directly to the questions and refer back here should you get stuck.

SQL Basics

Example Table

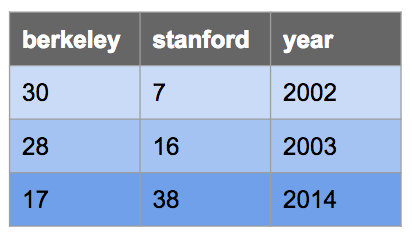

Here's a table called big_game used in the examples below, which records the scores for the Big Game each year. This table has three columns: berkeley, stanford, and year.

CREATE TABLE big_game (
    berkeley INTEGER, stanford INTEGER, year INTEGER);

INSERT INTO big_game (berkeley, stanford, year) VALUES
    (30, 7, 2002),
    (28, 16, 2003),
    (17, 38, 2014);

You can view it in sqlite like this:

sqlite> .mode column
sqlite> SELECT * FROM big_game;
berkeley  stanford  year
--------  --------  ----
30        7         2002
28        16        2003
17        38        2014

If the .mode column command doesn't work in your version of sqlite, that's ok. Just ignore it.

Selecting From Tables

Typically, we will create a new table from existing tables using a SELECT statement:

SELECT [columns] FROM [tables] WHERE [condition] ORDER BY [columns] LIMIT [limit];

Let's break down this statement:

• SELECT [columns] tells SQL that we want to include the given columns in our output table; [columns] is a comma-separated list of column names, and * can be used to select all columns
• FROM [table] tells SQL that the columns we want to select are from the given table
• WHERE [condition] filters the output table by only including rows whose values satisfy the given [condition], a boolean expression
• ORDER BY [columns] orders the rows in the output table by the given comma-separated list of columns; by default, values are sorted in ascending order (ASC), but you can use DESC to sort in descending order
• LIMIT [limit] limits the number of rows in the output table by the integer [limit]

Here are some examples:

Select all of Berkeley's scores from the big_game table, but only include scores from years past 2002:

sqlite> SELECT berkeley FROM big_game WHERE year > 2002;
28
17

Select the scores for both schools in years that Berkeley won:

sqlite> SELECT berkeley, stanford FROM big_game WHERE berkeley > stanford;
30|7
28|16

Select the years that Stanford scored more than 15 points:

sqlite> SELECT year FROM big_game WHERE stanford > 15;
2003
2014

SQL operators

Expressions in the SELECT, WHERE, and ORDER BY clauses can contain one or more of the following operators:

• comparison operators: =, >, <, <=, >=, <> or != ("not equal")
• boolean operators: AND, OR
• arithmetic operators: +, -, *, /
• concatenation operator: ||

Output the ratio of Berkeley's score to Stanford's score each year:

sqlite> select berkeley * 1.0 / stanford from big_game;
0.447368421052632
1.75
4.28571428571429

Output the sum of scores in years where both teams scored over 10 points:

sqlite> select berkeley + stanford from big_game where berkeley > 10 and stanford > 10;
55
44

Output a table with a single column and single row containing the value "hello world":

sqlite> SELECT "hello" || " " || "world";
hello world

CREATE TABLE flights (
    departure TEXT, arrival TEXT, price INTEGER);

INSERT INTO flights (departure, arrival, price) VALUES
    ('SFO', 'LAX', 97),
    ('SFO', 'AUH', 848),
    ('LAX', 'SLC', 115),
    ('SFO', 'PDX', 192),
    ('AUH', 'SEA', 932),
    ('SLC', 'PDX', 79),
    ('SFO', 'LAS', 40),
    ('SLC', 'LAX', 117),
    ('SEA', 'PDX', 32),
    ('SLC', 'SEA', 42),
    ('SFO', 'SLC', 97),
    ('LAS', 'SLC', 50),
    ('LAX', 'PDX', 89);

sqlite> SELECT COUNT(*) from FLIGHTS;
13

sqlite> SELECT departure, MIN(price) FROM flights GROUP BY departure;
departure  MIN(price)
---------  ----------
AUH        932
LAS        50
LAX        89
SEA        32
SFO        40
SLC        42

sqlite> SELECT departure FROM flights GROUP BY departure HAVING COUNT(*) >= 2;
departure
---------
LAX
SFO
SLC

sqlite> SELECT COUNT(DISTINCT departure) AS destinations FROM flights;
destinations
------------
6

Dog Data

In each question below, you will define a new table based on the following tables about dogs.

CREATE TABLE parents (parent TEXT, child TEXT);

INSERT INTO parents VALUES
  ('ace', 'bella'),
  ('ace', 'charlie'),
  ('daisy', 'hank'),
  ('finn', 'ace'),
  ('finn', 'daisy'),
  ('finn', 'ginger'),
  ('ellie', 'finn');

CREATE TABLE dogs (name TEXT, fur TEXT, height INTEGER);

INSERT INTO dogs VALUES
  ('ace',     'long',  26),
  ('bella',   'short', 52),
  ('charlie', 'long',  47),
  ('daisy',   'long',  46),
  ('ellie',   'short', 35),
  ('finn',    'curly', 32),
  ('ginger',  'short', 28),
  ('hank',    'curly', 31);

CREATE TABLE sizes (size TEXT, min INTEGER, max INTEGER);

INSERT INTO sizes VALUES
  ('toy',      24, 28),
  ('mini',     28, 35),
  ('medium',   35, 45),
  ('standard', 45, 60);

The parents table contains one row for each parent-child relationship; for example, the first row describes that the dog "ace" is the parent of the dog "bella". The dogs table contains the name, fur type, and height for each dog. The sizes table has one row for each classification of dog. A dog matches a particular classification if its height is greater than min and less than or equal to max.

Your queries should still perform correctly even if the values in these tables change. For example, if you are asked to list all dogs with a name that starts with h, you should write:

SELECT name FROM dogs WHERE name LIKE "h%";

The % sign matches any number of characters, and patterns in sqlite are case in-sensitive, so the pattern "h%" matches all strings that begin with h or H. This query would still be correct if a row was added with the name harry. Contrastingly, writing a query like SELECT "hank"; would not, and only works for the example input.

Q1: By Parent Height

Create a table by_parent_height that has a column of the names of all dogs that have a parent, ordered by the height of the parent dog from tallest parent to shortest parent.

-- All dogs with parents ordered by decreasing height of their parent
CREATE TABLE by_parent_height AS
  SELECT child FROM parents, dogs WHERE name = parent ORDER BY height desc;

For example, finn has a parent ellie with height 35, and so should appear before ginger who has a parent finn with height 32. The names of dogs with parents of the same height should appear together in any order. For example, bella and charlie should both appear at the end, but either one can come before the other.

For our example tables, the by_parent_height table should look like this:

+----------+
| chil     |
+----------+
| hank     |
| finn     |
| ace      |
| daisy    |
| ginger   |
| bella    |
| charlie  |
+----------+

Use Ok to test your code:

python3 ok -q by_parent_height
Copy
✂️

Q2: Size of Dogs

The Fédération Cynologique Internationale classifies a standard poodle as over 45 cm and up to 60 cm. The sizes table describes this and other such classifications, where a dog must be over the min and less than or equal to the max in height to qualify as size.

Create a size_of_dogs table with two columns, one for each dog's name and another for its size.

-- The size of each dog
CREATE TABLE size_of_dogs AS
  SELECT name, size FROM dogs, sizes
    WHERE height > min AND height <= max;

The size_of_dogs table should look like this:

+----------+----------+
| name     | size     |
+----------+----------+
| ace      | toy      |
| bella    | standard |
| charlie  | standard |
| daisy    | standard |
| ellie    | mini     |
| finn     | mini     |
| ginger   | toy      |
| hank     | mini     |
+----------+----------+

Use Ok to test your code:

python3 ok -q size_of_dogs
Copy
✂️

Q3: Sentences

Siblings are pairs of dogs that have the same parent. Create a table that contains a row for each pair of siblings that have the same size classification, with a single column that contains a sentence describing the siblings by their size.

-- [Optional] Filling out this helper table is recommended
CREATE TABLE siblings AS
  SELECT a.child AS first, b.child AS second FROM parents AS a, parents AS b
    WHERE a.parent = b.parent AND a.child < b.child;
-- Sentences about siblings that are the same size
CREATE TABLE sentences AS
  SELECT "The two siblings, " || first || " and " || second || ", have the same size: " || a.size
    FROM siblings, size_of_dogs AS a, size_of_dogs AS b
    WHERE a.size = b.size AND a.name = first AND b.name = second;

Each sibling pair should appear only once in the output, and siblings should be listed in alphabetical order (e.g. "bella and charlie..." instead of "charlie and bella..."), as follows:

sqlite> SELECT * FROM sentences;
The two siblings, bella and charlie, have the same size: standard
The two siblings, ace and ginger, have the same size: toy

Hint: First, create a helper table containing the names of each pair of siblings. This will make comparing the sizes of siblings when constructing the main table easier. Make sure to not pair a child with themselves and do not include duplicate pairs.

Hint: If you join a table with itself, use AS within the FROM clause to give each table an alias.

Hint: In order to concatenate two strings into one, use the || operator, e.g. SELECT "hello" || "world"; will return helloworld.

Use Ok to test your code:

python3 ok -q sentences
Copy
✂️

Q4: Low Variance

We want to create a table that contains the height range (defined as the difference between maximum and minimum height) of all dogs that share a fur type. However, we'll only consider fur types where each dog with that fur type is within 30% of the average height of all dogs with that fur type; we call this the low variance criterion.

For example, if the average height for short-haired dogs is 10, then in order to be included in our output, all dogs with short hair must have a height of at most 13 and at least 7 (inclusive).

Hint: MIN, MAX, and AVG will be useful here.

Hint: You may want to first find the average height and make sure that:

* There are no heights smaller than 0.7 (i.e. 70%) of the average.
* There are no heights greater than 1.3 (i.e. 130%) of the average.

-- Height range for each fur type where all of the heights differ by no more than 30% from the average height
CREATE TABLE low_variance AS
  SELECT fur, MAX(height) - MIN(height) AS height_range FROM dogs GROUP BY fur
      HAVING MIN(height) >= .7 * AVG(height) AND MAX(height) <= 1.3 * AVG(height);

Your output should have two columns, in this order: the fur type and the height_range for the fur types that meet this criteria. For the example tables, it should look like this:

+------------+--------------+
| fur        | height_range |
+------------+--------------+
| Curly      | 1            |
+------------+--------------+

Use Ok to test your code:

python3 ok -q low_variance
Copy
✂️

Check Your Score Locally

You can locally check your score on each question of this assignment by running

python3 ok --score

This does NOT submit the assignment! When you are satisfied with your score, submit the assignment to Gradescope to receive credit for it.

Submit Assignment

Submit this assignment by uploading any files you've edited to the appropriate Gradescope assignment. Lab 00 has detailed instructions.

Exam Practice

Homework assignments will also contain prior exam questions for you to try. These questions have no submission component; feel free to attempt them if you'd like some practice!

SQL

1. Fall 2024 Final Q8: Arcane Jobs
2. Fall 2019 Final, Question 10: Big Game
3. Summer 2019 Final, Question 8: The Big SQL
4. Fall 2018 Final, Question 7: SQL of Course
