SQL Basics

Example Table

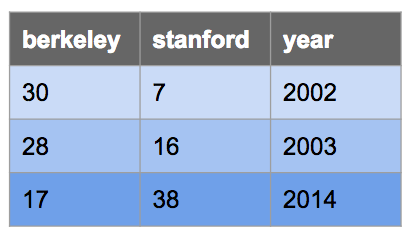

Here's a table called big_game used in the examples below, which records the scores for the Big Game each year. This table has three columns: berkeley, stanford, and year.

CREATE TABLE big_game (
    berkeley INTEGER, stanford INTEGER, year INTEGER);

INSERT INTO big_game (berkeley, stanford, year) VALUES
    (30, 7, 2002),
    (28, 16, 2003),
    (17, 38, 2014);

You can view it in sqlite like this:

sqlite> .mode column
sqlite> SELECT * FROM big_game;
berkeley  stanford  year
--------  --------  ----
30        7         2002
28        16        2003
17        38        2014

If the .mode column command doesn't work in your version of sqlite, that's ok. Just ignore it.

Selecting From Tables

Typically, we will create a new table from existing tables using a SELECT statement:

SELECT [columns] FROM [tables] WHERE [condition] ORDER BY [columns] LIMIT [limit];

Let's break down this statement:

• SELECT [columns] tells SQL that we want to include the given columns in our output table; [columns] is a comma-separated list of column names, and * can be used to select all columns
• FROM [table] tells SQL that the columns we want to select are from the given table
• WHERE [condition] filters the output table by only including rows whose values satisfy the given [condition], a boolean expression
• ORDER BY [columns] orders the rows in the output table by the given comma-separated list of columns; by default, values are sorted in ascending order (ASC), but you can use DESC to sort in descending order
• LIMIT [limit] limits the number of rows in the output table by the integer [limit]

Here are some examples:

Select all of Berkeley's scores from the big_game table, but only include scores from years past 2002:

sqlite> SELECT berkeley FROM big_game WHERE year > 2002;
28
17

Select the scores for both schools in years that Berkeley won:

sqlite> SELECT berkeley, stanford FROM big_game WHERE berkeley > stanford;
30|7
28|16

Select the years that Stanford scored more than 15 points:

sqlite> SELECT year FROM big_game WHERE stanford > 15;
2003
2014

SQL operators

Expressions in the SELECT, WHERE, and ORDER BY clauses can contain one or more of the following operators:

• comparison operators: =, >, <, <=, >=, <> or != ("not equal")
• boolean operators: AND, OR
• arithmetic operators: +, -, *, /
• concatenation operator: ||

Output the ratio of Berkeley's score to Stanford's score each year:

sqlite> select berkeley * 1.0 / stanford from big_game;
0.447368421052632
1.75
4.28571428571429

Output the sum of scores in years where both teams scored over 10 points:

sqlite> select berkeley + stanford from big_game where berkeley > 10 and stanford > 10;
55
44

Output a table with a single column and single row containing the value "hello world":

sqlite> SELECT "hello" || " " || "world";
hello world

Joins

To select data from multiple tables, we can use joins. There are many types of joins, but the only one we'll worry about is the inner join. To perform an inner join on two on more tables, simply list them all out in the FROM clause of a SELECT statement:

SELECT [columns] FROM [table1], [table2], ... WHERE [condition] ORDER BY [columns] LIMIT [limit];

We can select from multiple different tables or from the same table multiple times.

Let's say we have the following table that contains the names of head football coaches at Cal since 2002:

CREATE TABLE coaches (
    name TEXT,
    start INTEGER,
    end INTEGER
);

INSERT INTO coaches (name, start, end)
VALUES
    ('Jeff Tedford', 2002, 2012),
    ('Sonny Dykes', 2013, 2016),
    ('Justin Wilcox', 2017, 2025);

When we join two or more tables, the default output is a cartesian product. For example, if we joined big_game with coaches, we'd get the following:

sqlite> SELECT * FROM big_game JOIN coaches;
berkeley  stanford  year  name           start  end
--------  --------  ----  -------------  -----  ----
30        7         2002  Jeff Tedford   2002   2012
30        7         2002  Sonny Dykes    2013   2016
30        7         2002  Justin Wilcox  2017   2025
28        16        2003  Jeff Tedford   2002   2012
28        16        2003  Sonny Dykes    2013   2016
28        16        2003  Justin Wilcox  2017   2025
17        38        2014  Jeff Tedford   2002   2012
17        38        2014  Sonny Dykes    2013   2016
17        38        2014  Justin Wilcox  2017   2025

If we want to match up each game with the coach that season, we'd have to compare columns from the two tables in the WHERE clause:

sqlite> SELECT * FROM big_game JOIN coaches ON year >= start AND year <= end
   ...> ;
berkeley  stanford  year  name          start  end
--------  --------  ----  ------------  -----  ----
30        7         2002  Jeff Tedford  2002   2012
28        16        2003  Jeff Tedford  2002   2012
17        38        2014  Sonny Dykes   2013   2016

In the query above, none of the column names are ambiguous. For example, it is clear that the start column comes from the coaches table because there isn't a column in the big_game table with that name. However, if a column name exists in more than one of the tables being joined, or if we join a table with itself, we must disambiguate the column names using dot notation and aliases.

For examples, let's find out what the score difference is for each team between a game in big_game and any previous games. Since each row in this table represents one game, in order to compare two games we must join big_game with itself:

sqlite> SELECT b.Berkeley - a.Berkeley, b.Stanford - a.Stanford, a.Year, b.Year
   ...>   FROM big_game AS a, big_game AS b WHERE a.Year < b.Year;
b.Berkeley - a.Berkeley  b.Stanford - a.Stanford  year  year
-----------------------  -----------------------  ----  ----
-2                       9                        2002  2003
-13                      31                       2002  2014
-11                      22                       2003  2014

In the query above, we give the alias a to the first big_game table and the alias b to the second big_game table. We can then reference columns from each table using dot notation with the aliases, e.g. a.Berkeley, a.Stanford, and a.Year to select from the first table.

SQL Aggregation

Here's another example table, this time about flights:

CREATE TABLE flights (
    departure TEXT, arrival TEXT, price INTEGER);

INSERT INTO flights (departure, arrival, price) VALUES
    ('SFO', 'LAX', 97),
    ('SFO', 'AUH', 848),
    ('LAX', 'SLC', 115),
    ('SFO', 'PDX', 192),
    ('AUH', 'SEA', 932),
    ('SLC', 'PDX', 79),
    ('SFO', 'LAS', 40),
    ('SLC', 'LAX', 117),
    ('SEA', 'PDX', 32),
    ('SLC', 'SEA', 42),
    ('SFO', 'SLC', 97),
    ('LAS', 'SLC', 50),
    ('LAX', 'PDX', 89);

Applying an aggregate function such as MAX(column) combines the values from multiple rows into an output row.

By default, we combine the values of all rows in the table. For example, if we wanted to count the number of rows in our flights table, we could use:

sqlite> SELECT COUNT(*) from FLIGHTS;
13

What if we wanted to group together the values in similar rows and perform the aggregation operations within those groups? We use a GROUP BY clause.

Here's another example. For each unique departure, collect all of the rows having the same departure airport into a group. Then, select the price column and apply the MIN aggregation to recover the price of the cheapest departure from that group. The end result is a table of departure airports and the cheapest departing flight.

sqlite> SELECT departure, MIN(price) FROM flights GROUP BY departure;
departure  MIN(price)
---------  ----------
AUH        932
LAS        50
LAX        89
SEA        32
SFO        40
SLC        42

Just like how we can filter out rows with WHERE, we can also filter out groups with HAVING. Typically, a HAVING clause should use an aggregation function. Suppose we want to see all airports with at least two departures:

sqlite> SELECT departure FROM flights GROUP BY departure HAVING COUNT(*) >= 2;
departure
---------
LAX
SFO
SLC

Note that the COUNT(*) aggregate just counts the number of rows in each group. Say we want to count the number of distinct airports instead. Then, we could use the following query:

sqlite> SELECT COUNT(DISTINCT departure) AS destinations FROM flights;
destinations
------------
6

This enumerates all the different departure airports available in our flights table (in this case: SFO, LAX, AUH, SLC, SEA, and LAS).

Usage

First, check that a file named sqlite_shell.py exists alongside the assignment files. If you don't see it, or if you encounter problems with it, scroll down to the Troubleshooting section to see how to download an official precompiled SQLite binary before proceeding.

You can start an interactive SQLite session in your Terminal or Git Bash with the following command:

python3 sqlite_shell.py

While the interpreter is running, you can type .help to see some of the commands you can run.

To exit out of the SQLite interpreter, type .exit or .quit or press Ctrl-C. Remember that if you see ...> after pressing enter, you probably forgot a ;.

You can also run all the statements in a .sql file by doing the following: (Here we're using the lab11.sql file as an example.)

1. Runs your code and then exits SQLite immediately afterwards.

   python3 sqlite_shell.py < lab11.sql

2. Runs your code and then opens an interactive SQLite session, which is similar to running Python code with the interactive -i flag.

   python3 sqlite_shell.py --init lab11.sql

Visualizing SQL

The CS61A SQL Web Interpreter is a great tool for visualizing and debugging SQL statements!

To get started, visit code.cs61a.org and hit Start SQL interpreter on the launch screen.

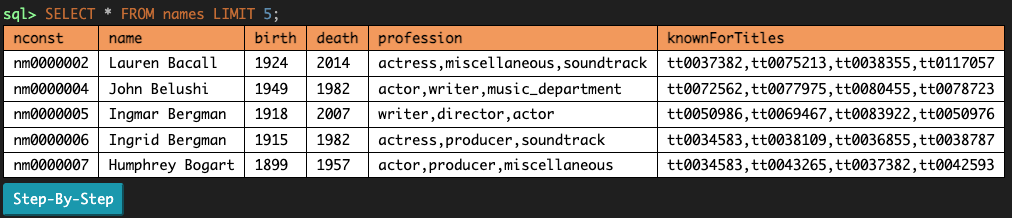

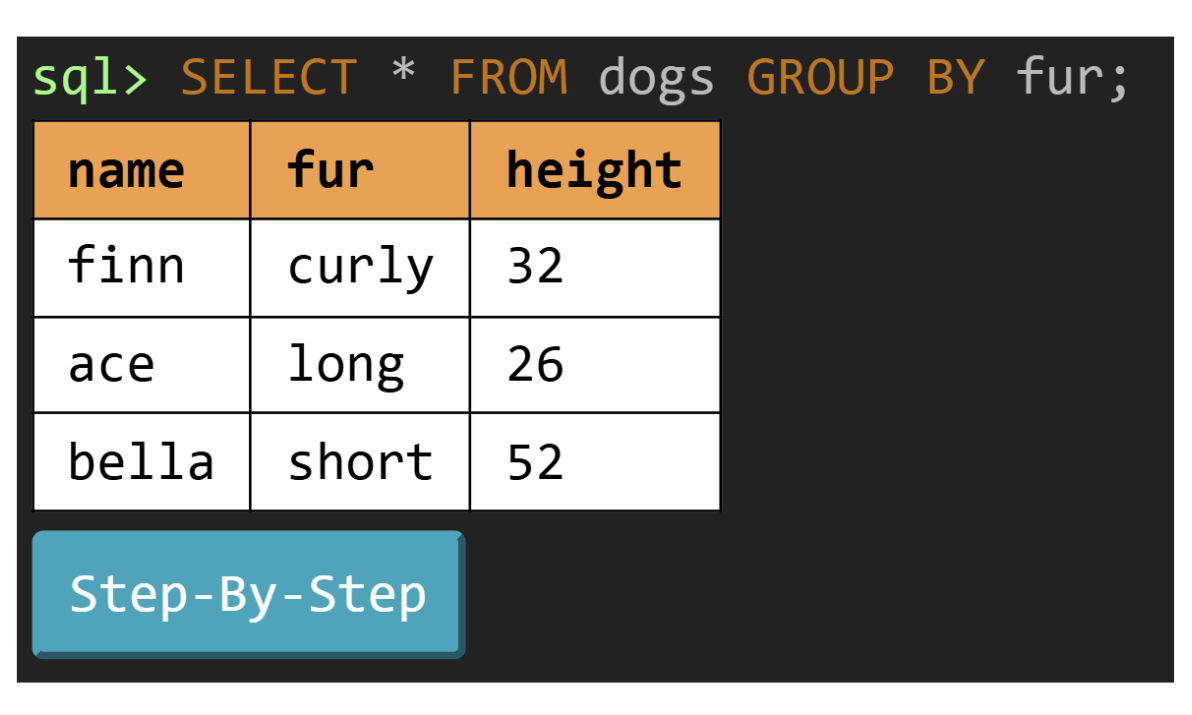

Most tables used in assignments are already available for use, so let's try to execute a SELECT statement:

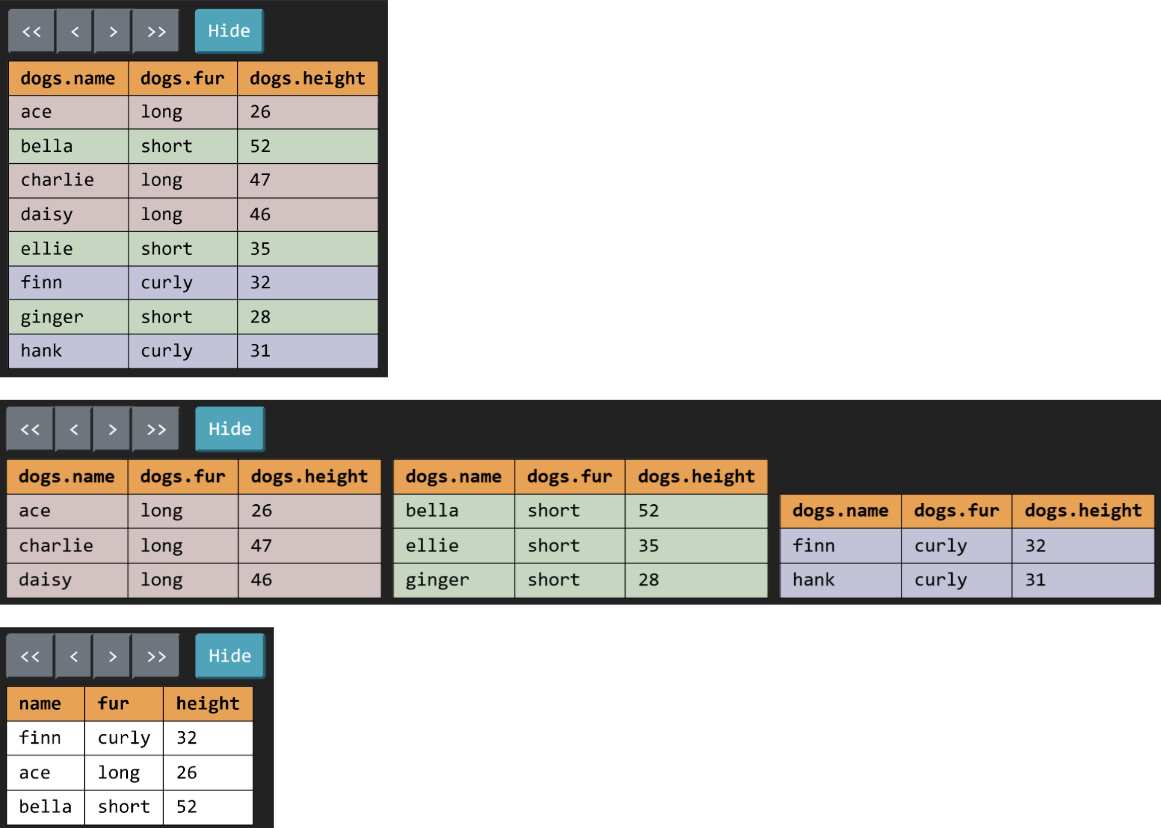

In addition to displaying a visual representation of the output table, the "Step-by-step" button lets us step through the SQL execution and visualize every transformation that takes place. For our example, clicking on the next arrow will produce the following visuals, demonstrating exactly how SQL is grouping our rows to form the final output!

  SELECT ____, ____
  FROM ____
  ORDER BY ____
  LIMIT ____;

1. Use FROM to specify which table to read the data from.
2. Use ORDER BY to sort by which movies are the newest.
3. Use LIMIT to select only the 10 newest movies.
4. Use SELECT to put the movie title and year in the output.

SELECT _____, _____
FROM _____ JOIN _____ ON _____
WHERE ____ LIKE "%dog%";

1. Use FROM, JOIN, and ON to combine the information in the titles and principals tables.
2. Use WHERE to select only characters that include "dog".
3. Use SELECT to put the movie title and character in the output.

  SELECT ____, ____ AS lead_roles
  FROM ____ JOIN ____ ON ____
  WHERE ____
  GROUP BY names.nconst
  HAVING count(*) > 10;

1. Use FROM and ON to combine the information in the principals and names tables.
2. Use WHERE to select only lead roles.
3. Use GROUP BY to create a single row for each person.
4. Use HAVING to output only people who had more than 10 lead roles.
5. Use SELECT to put the person's name and the count of their roles in the output.

sqlite> SELECT (192 * 10) || "s";
1920s

SELECT ____ AS decade, ____ AS count
FROM ____
WHERE ____
GROUP BY ____;

1. Use FROM and WHERE to choose only the movies with runtime greater than 180 minutes.
2. Use GROUP BY to group together all of the movies for one decade.
3. Use SELECT to create a string like 1920s for each decade, and to select the count of movies for each decade.
